18W/8545-00


Characteristic sensitivity (2.83V / 1m)
:
88 dB
Recommended frequency range
:
28 - 4000 Hz
Free air resonance frequency, fs
:
28 Hz
DC resistance, Re
:
5.5 ohm
Voice coil inductance, Le
:
0.4 mH
Effective piston area, Sd
:
145 cm²
Moving mass incl. air, md
:
20 g
Mechanical loss, Rm
:
1.5 Ns/m
Force factor, BL
:
8.0 Tm
Equivalent volume, Vas
:
48 ltr.
Mechanical Q-factor, Qms
:
2.3
Electrical Q-factor, Qes
:
0.30
Total Q-factor, Qts
:
0.27
Excursion, lin./max.
:
¡À6.5 / ¡À10 mm
Voice coil diameter
:
42 mm
Rated power handling
:
100 W
Net weight
:
2.4 kg

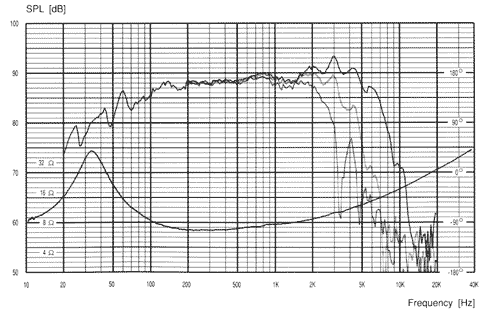

      Frequency response: 2.83V / 1m
