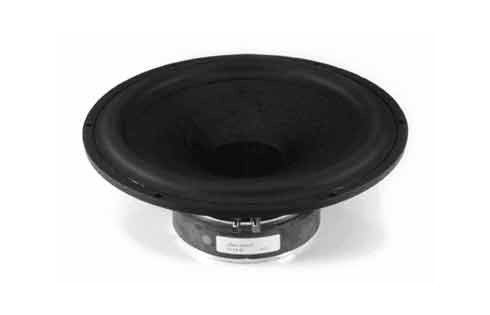

25W/8565-01 |
ÉϺ£¶«Ñ¶£ºwww.hifi-efax.com
| Characteristic sensitivity (2.83V / 1m) |
: |
88 dB | |
| Recommended frequency range |
: |
19 - 600 Hz | |
| Free air resonance frequency, fs |
: |
19 Hz | |
| DC resistance, Re |
: |
5.5 ohm | |
| Voice coil inductance, Le |
: |
0.6 mH | |
| Effective piston area, Sd |
: |
330 cm² | |
| Moving mass incl. air, md |
: |
47 g | |
| Mechanical loss, Rm |
: |
1.0 Ns/m | |
| Force factor, BL |
: |
9.3 Tm | |
| Equivalent volume, Vas |
: |
229 ltr. | |
| Mechanical Q-factor, Qms |
: |
5.6 | |
| Electrical Q-factor, Qes |
: |
0.36 | |
| Total Q-factor, Qts |
: |
0.34 | |
| Excursion, lin./max. |
: |
¡À6.5 / ¡À12 mm | |
| Voice coil diameter |
: |
42 mm | |
| Rated power handling |
: |
100 W | |
| Net weight |
: |
2.6 kg |
