| Nominal impedance [ohm] |
6 |
|
|
| Voice coil resistance [ohm] |
4.6 |
|
|
| Nominal power [W] |
100 |
|
|
| Short term max power [W] |
- |
|
|
| Long term max power [W] |
- |
|
|
| Operating power [W] |
5 |
|
|
| Sensitivity [dB] |
90 |
|
|
| Frequency range [kHz] |
1.5-35 |
|
|
| Free air resonance [Hz] |
850 |
|
|
| Voice coil diameter [mm] |
25 |
|
|
| Voice coil height [mm] |
1.6 |
|
|
| Air gap height [mm] |
2 |
|
|
| Voice coil inductance [mH] |
- |
|
|
| Eff. diaphragm Area [cm²] |
7.1 |
|
|
| Moving mass [g] |
0.3 |
|
|
| Magnet weight [g]/[oz] |
240/8.5 |
|
|
| Force factor [Bl] |
3.3 |
|
|
| VAS [l] |
- |
|
|
| Qms |
- |
|
|
| Qes |
- |
|
|
| Qts |
- |
|
|
|

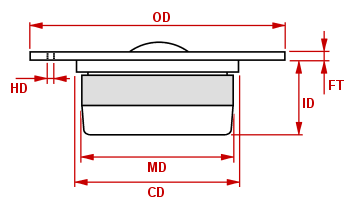

| OD: |
104 mm |
|
CD: |
83 mm |
| FT: |
4.5 mm |
|
ID: |
36 mm |
| MD: |
73.5 mm |
|
HD: |
4xø4@ø94 | |
