| Nominal impedance [ohm] |
8 |
|
|
| Voice coil resistance [ohm] |
5.5 |
|
|
| Nominal power [W] |
35 |
|
|
| Short term max power [W] |
225 |
|
|
| Long term max power [W] |
180 |
|
|
| Operating power [W] |
10 |
|
|
| Sensitivity [dB] |
86 |
|
|

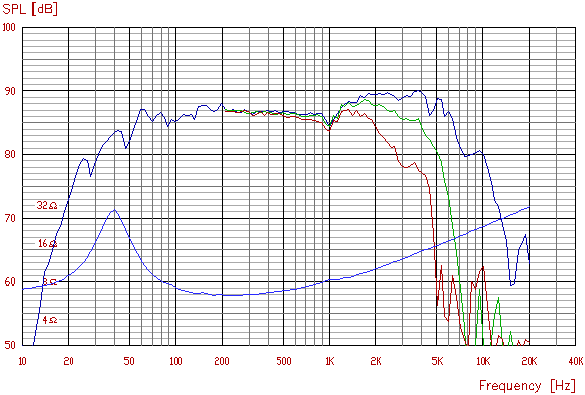

| Frequency range [Hz] |
40-4000 |
|
|
| Free air resonance [Hz] |
37 |
|
|
| Voice coil diameter [mm] |
25 |
|
|
| Voice coil height [mm] |
12 |
|
|
| Air gap height [mm] |
4 |
|
|
| Voice coil inductance [mH] |
0.75 |
|
|
| Eff. diaphragm Area [cm²] |
138 |
|
|
| Moving mass [g] |
11.2 |
|
|
| Magnet weight [g]/[oz] |
240/8.5 |
|
|
| Force factor [Bl] |
5.0 |
|
|
| VAS [l] |
44 |
|
|
| Qms |
2.62 |
|
|
| Qes |
0.58 |
|
|
| Qts |
0.47 |
|
|
|

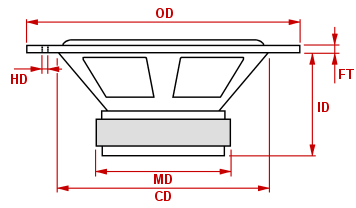

| OD: |
180 mm |
|
CD: |
147 mm |
| FT: |
4.6 mm |
|
ID: |
68 mm |
| MD: |
73.5 mm |
|
HD: |
- | |
